Precious Metal Casting Graphite Ingot Mold with High Bulk Density and Performance

Name: Precious Metal Casting Graphite Ingot Mold with High Bulk Density and Performance
Brand: Zion
Price: 0.60 USD

Quality Precious Metal Casting Graphite Ingot Mold with High Bulk Density and Performance for sale

Application : Metallurgical industry, for precious metal smelting , like gold, silver, platinum

Technique : Die Molded

Resistance (μΩ.m) : 7.9-17.1 μΩm

Bulk Density (g/cm³ ) : 1.62-1.98g/cm3

Porosity (%) : Max Grain Size: 0.8~4.0mm

Place of Origin : Henan, China

Brand Name : Zion

Model Number : graphite mold

Name : graphite ingot mold

Material 2 : High purity, high strength

Sample : available

Compressive strength : 78-200 Mpa

Flexural strength : 39-92 Mpa

Tensile strength : 25-70 Mpa

Chemical Composition : carbon

Packaging Details : Carton or wooden case, or standard export package , or as per yours

Port : Shanghai, Ningbo,Lianyungang

Supply Ability : 1000 Ton/Tons per Year

MOQ : 100 pieces

Price : $0.60 - $3.00/pieces

Contact Now

Product Details

Accept customize any size of graphite ring sleeve, ODM OEM is available !!Just contact us!

Size and Shape:

It can be customized according to your sizes or drawings.
Application:
1. Applied for sintering diamond tools
2. for precious metal smelting , like gold, silver, platinum
3. for copper, brass and bronze horizontal and vertical continuous casting

Advantages:
1. High temperature resistance as high as 3000 degree and long service life.

2. High strength and no strength reduction even at temperture of 3000 degree
3. High purity, low ash content as 0.1%, or even purified to 50ppm or 10 ppm at request
4. Good structure uniformity and continuously stable quality.
5. Chemically stable property and no reaction with treated substances, and graphite will not be sticked to the treated products.

Precious Metal Casting Graphite Ingot Mold with High Bulk Density and Performance

Product Advantage

1.The raw material is high-purity isostatic graphite, which is resistant to oxidation, high temperature resistance and long life

2.Fine machining , reasonable design, non-stick slag, not easy to crack

3. Does not pollute metal, conducts electricity well, heats up quickly

Physical And Chemical Index
Model	WX-4	WX-5	WX-6	WX-7	WX-8	Red-5	Red-7	Red-8
Bulk Density (g/cm³)	1.75	1.85	1.90	1.82	1.90	1.68	1.85	1.90
Resistivity (Ωm)	8~11	8~10	8~9	11~13	11~13	13~15	11~13	11~13
Thermal Conductivity (100℃) W/m.k	110~120	130~140	130~140	110~120	110~120	80~100	100~120	110~120
Thermal expansion coefficient(Room temp-600℃)10-6/℃	5.46	4.75	4.8	5.8	5.85	5.8	5.9	5.85
Shore hardness (HSD)	42	48	53	65	70	60	68	72
Flexural strength (Mpa)	38	46	55	51	60	38	62	70
Compressive strength (Mpa)	65	85	95	115	135	80	135	160
Elastic Modulus(Gpa)	9	11.8	12	12	13	8.8	12	13
Porosity(%)	17	13	11	12	11	18	12	11
Ash(PPM)	500	500	500	500	500	500	500	500
Purified ash (PPM)	50	50	50	50	50	50	50	50
Grain size (um)	13~15	13~15	8~10	8~10	8~10	8~10	7	5

Packing and Delivery

Other Graphite Products Display

We can produce various graphite items, like graphite crucible, furance heaters , graphite box, Fuel Cell Bipolar Plates, Graphite mold for digestion instrument, welding mould , Graphite bearings, graphite sliders, graphite pots, graphite screws, graphite scrapers, graphite nozzles, graphite products for various non-ferrous metallurgy, kilns, glass and other industries.

Contact us if you need any graphite items !!!

Company Description

Henan Zion New Material Co., Ltd. is an enterprise specializing in the production and sales of graphite products and new industrial materials. The main products are: graphite rods , graphite crucibles, graphite molds, graphite plates, graphite rods, high-purity graphite, etc. We have advanced graphite processing equipment and superb production technology, with CNC milling machines, CNC lathes, large sawing machines, surface grinders and so on. Various difficult graphite products can be processed according to customer requirements.

FAQ

1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,
quantity etc. .If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 2-5 days.

3.What about the lead time for mass product?
The lead time is based on the quantity,about 5-7 days.For graphite product,apply
Dual-use items license need about 15-20working days.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
Besides that, we can also shipping by Air and Express.

Do you know how do we produce the graphite crucible?

1. We will select the best material according to your application, such as use, working temperature, in vacuum or air and so on.

2. We will confirm your size or drawing and machining precision.

3. We will send the drawing to our technicist and worker

4. We will use the numerically-controlled machine tool to produce.

5. We will check the quality and size.

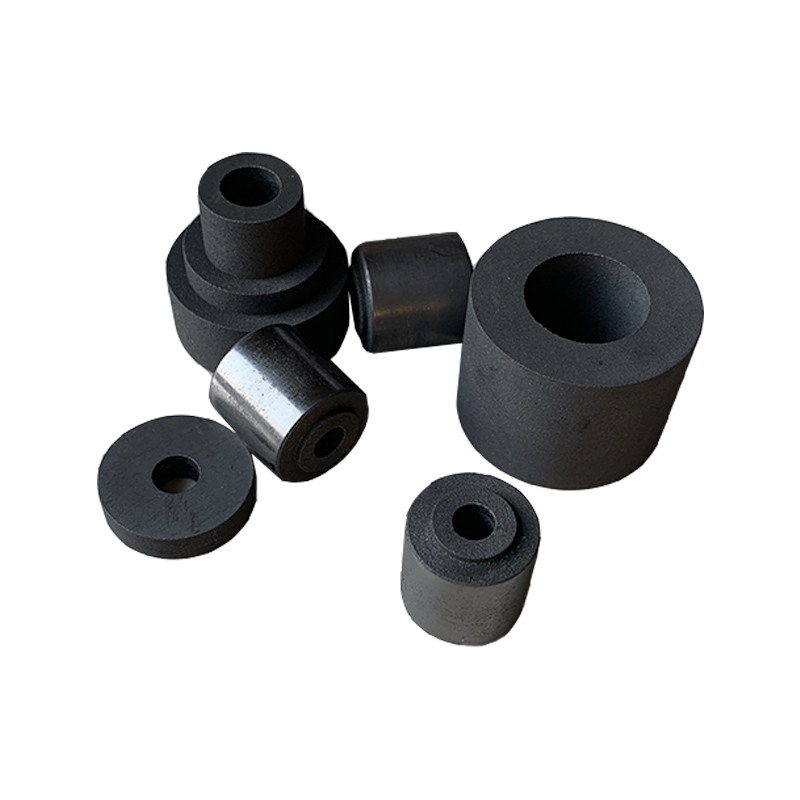

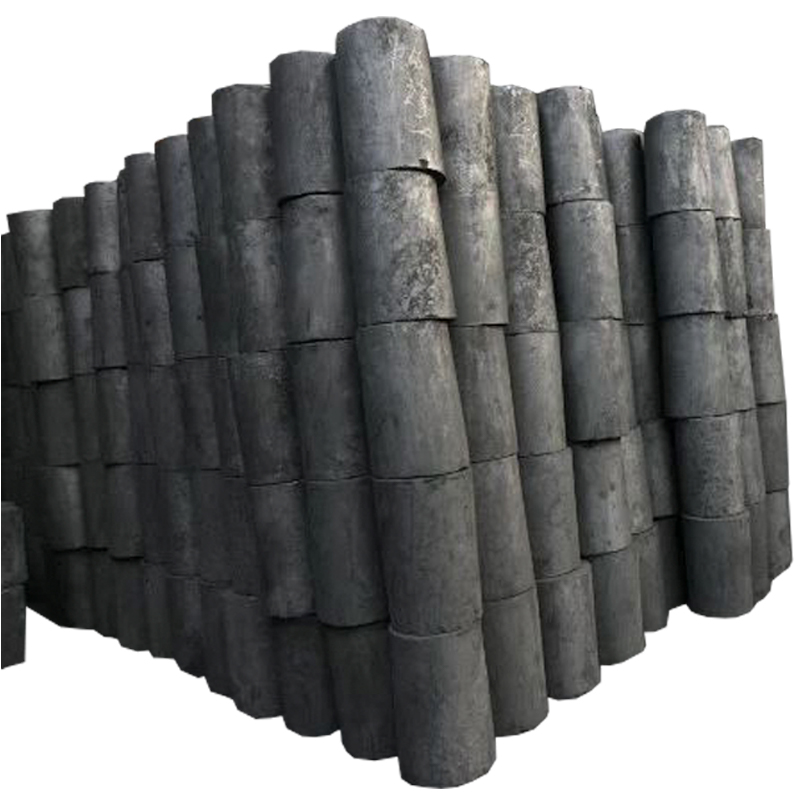

Precious Metal Casting Graphite Ingot Mold with High Bulk Density and Performance Images
